How does Parblo Ninos Q2 connect to an Android phone (tablet)?

Before connecting:
Please make sure to first adjust the gear mode on the back of the Parblo Ninos Q2 product to the [Pad]/[Phone] position

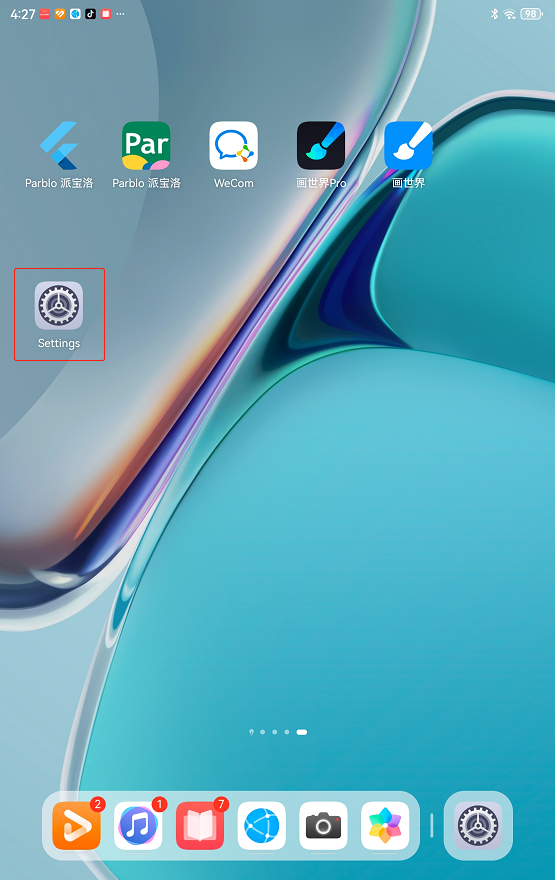

1. Open "Settings"

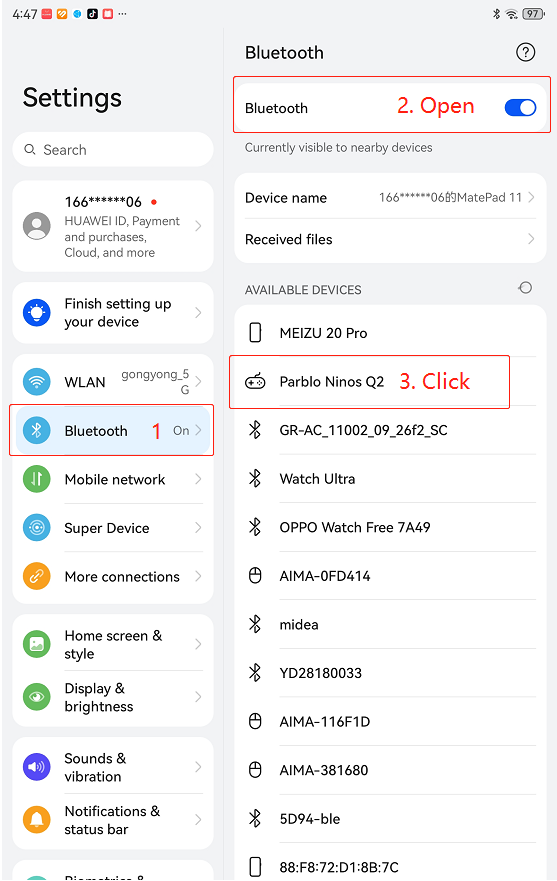

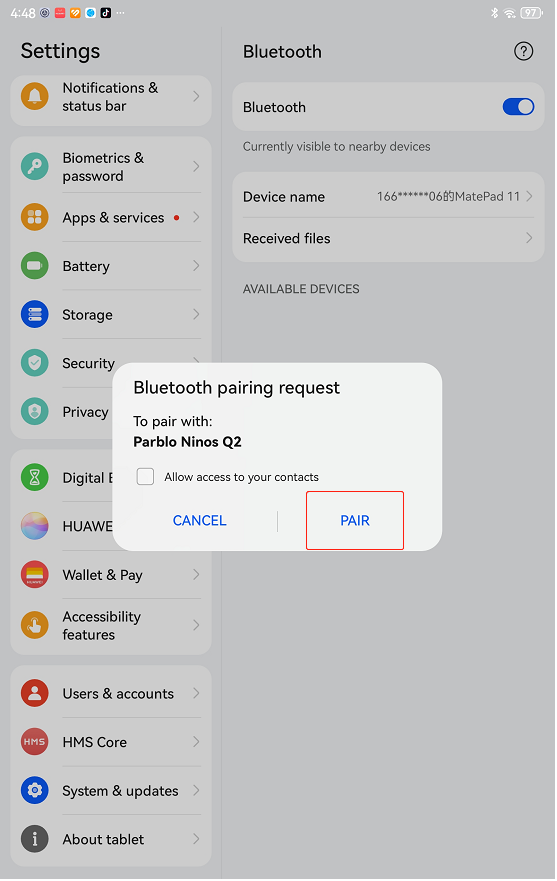

2. In the settings window, open the Bluetooth interface, turn on the Bluetooth switch, find "Parblo Ninos Q2", and click "Pairing"
Please pay attention! Before connecting to Bluetooth, please make sure to press and hold the Bluetooth power button for power on, or press the Bluetooth power button three times continuously to ensure that the digital board indicator light is in a blue flashing state

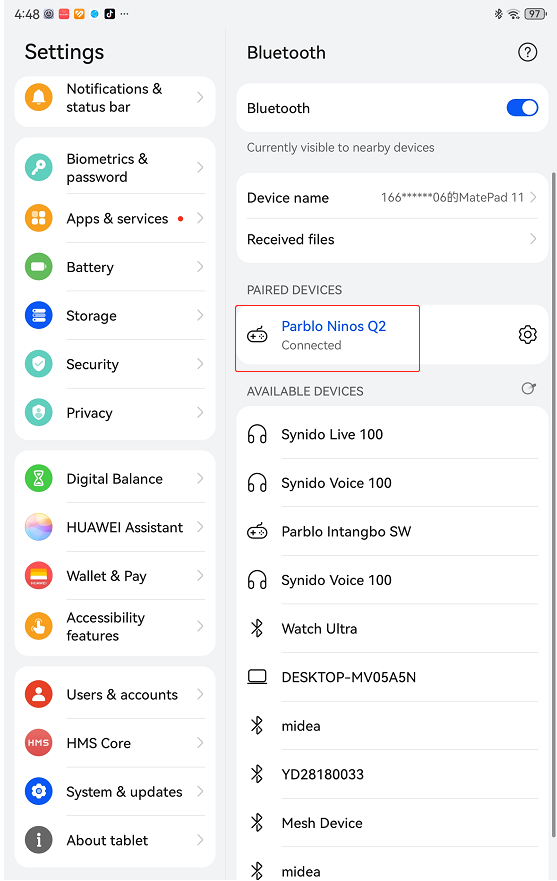

3. Connection successful, Parblo Ninos Q2 shows "Connected"

Please note:

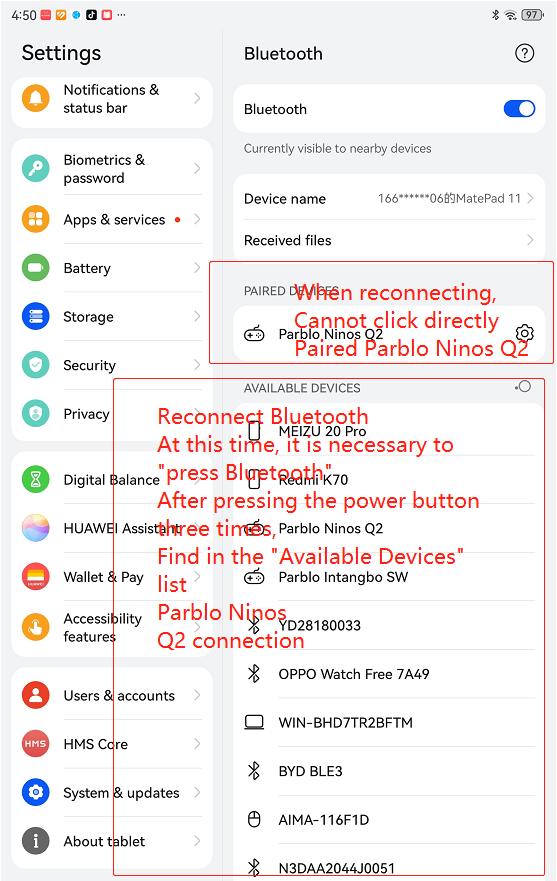

① If Bluetooth needs to be reconnected, after pressing the Bluetooth power button three times continuously, please find "Parblo Ninos Q2" in "Available Devices" to connect. Do not directly click "Paired Devices" Parblo Ninos Q2

② If the connection is not successful, please make sure to "cancel all Parblo Ninos Q2 pairing" first, then "press the Bluetooth power button three times continuously", and then reconnect

Both Parblo Ninos Q2 and Android devices can only be placed vertically, and the digital board button end is placed on the left. If there is an inconsistency in the drawing ratio, please click here to set it up
