1. prepare a computer, connect the digital board to the computer, and download the computer driver (click here for driver download)
2. After downloading and installing, open the driver and upgrade the firmware
(After the upgrade is completed, connect the digital board to the phone and it can be used normally.)
Windows upgrade process:
(Please note! After a successful upgrade, when connecting to an Android device, you need to adjust the side switch of the digital board to the "black leakage" position for use.)
N4 click to download this firmware
N7 click to download this firmware
N7B click to download this firmware
N10 click to download this firmware
N10B click to download this firmware
Ninos S Click to download this firmware (no need to switch gears)
Ninos M Click to download this firmware (no need to switch gears)
① According to the digital board model, click "Download this firmware" above, download the corresponding firmware file, and save it to a location you can find

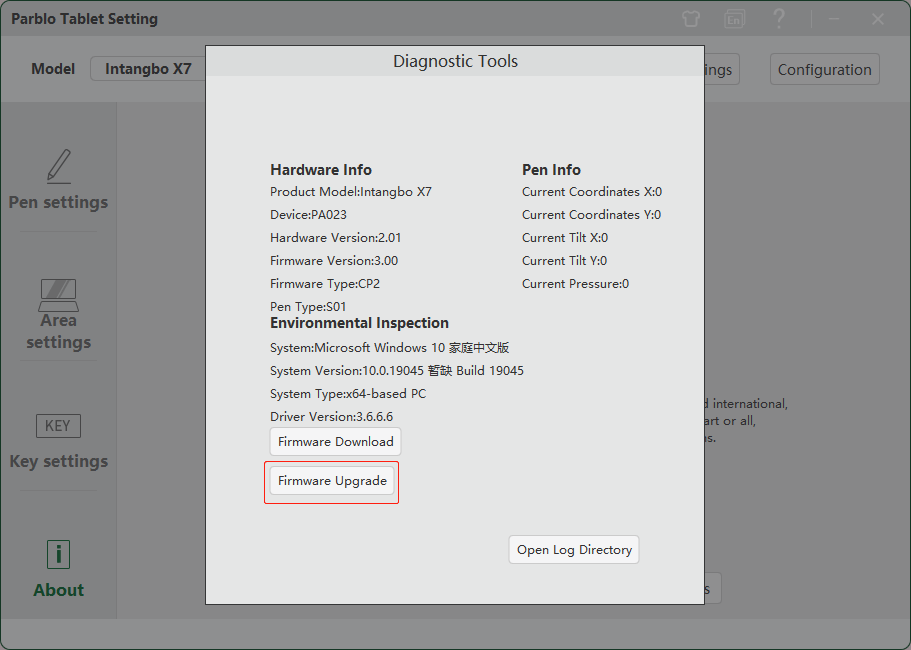

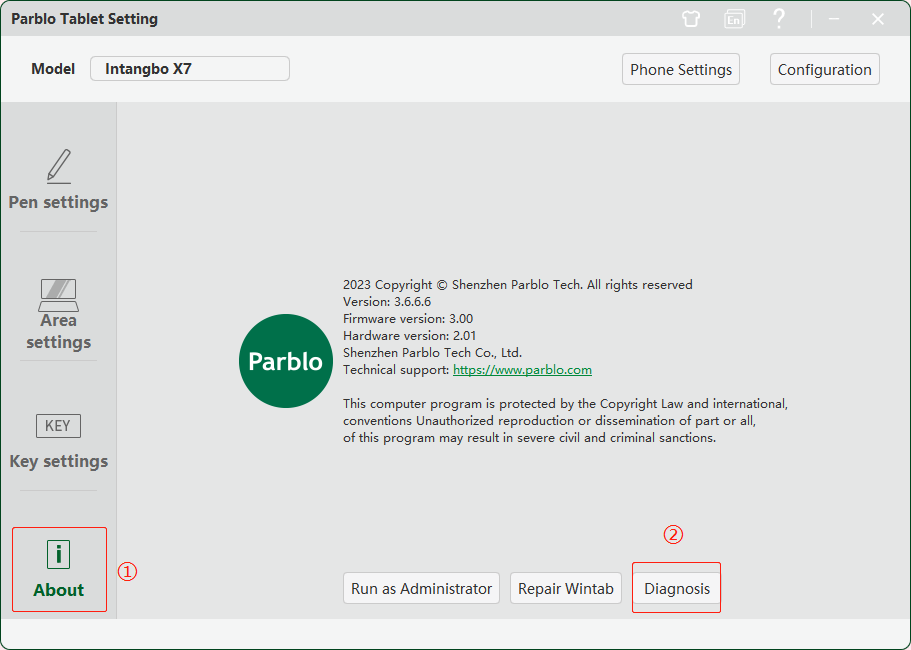

② Open the driver, click on "About" - "Diagnosis" - "Firmware Upgrade"

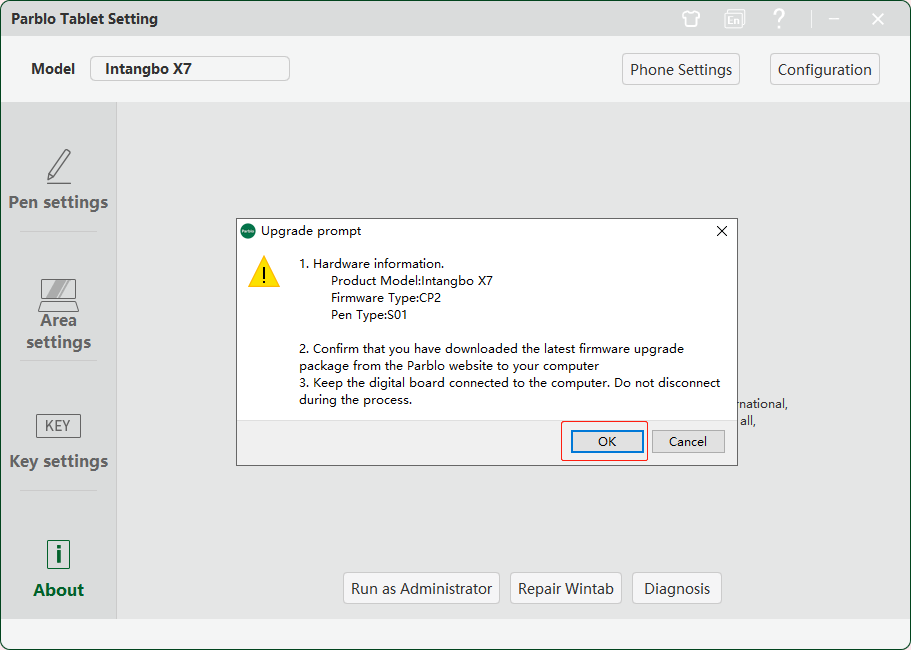

③ In the pop-up window, click "OK" to open the file window

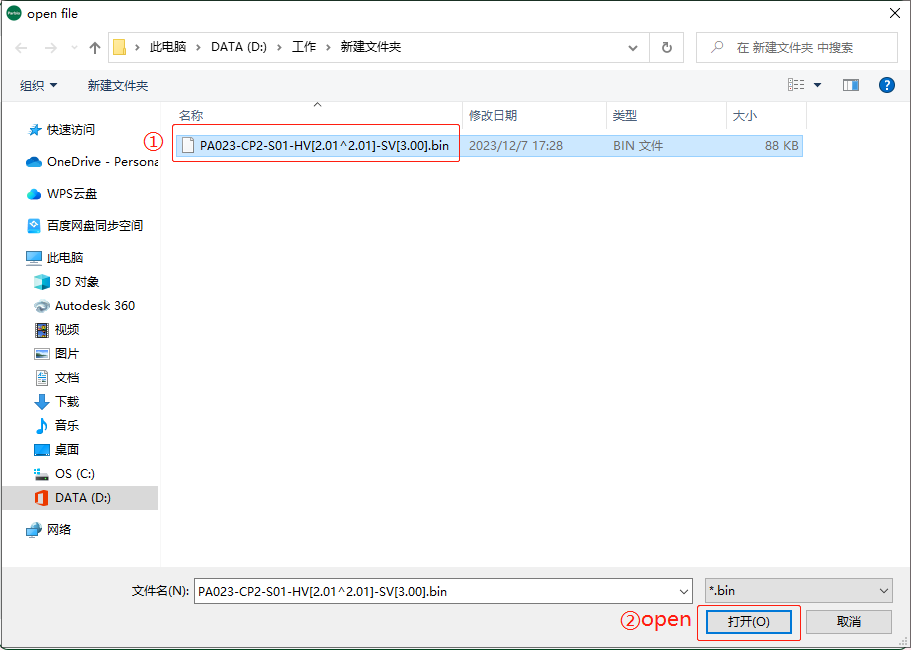

④ Find the firmware you just downloaded and saved in the pop-up window, open the BIN file to upgrade
(Attention! Do not disconnect during the upgrade process)

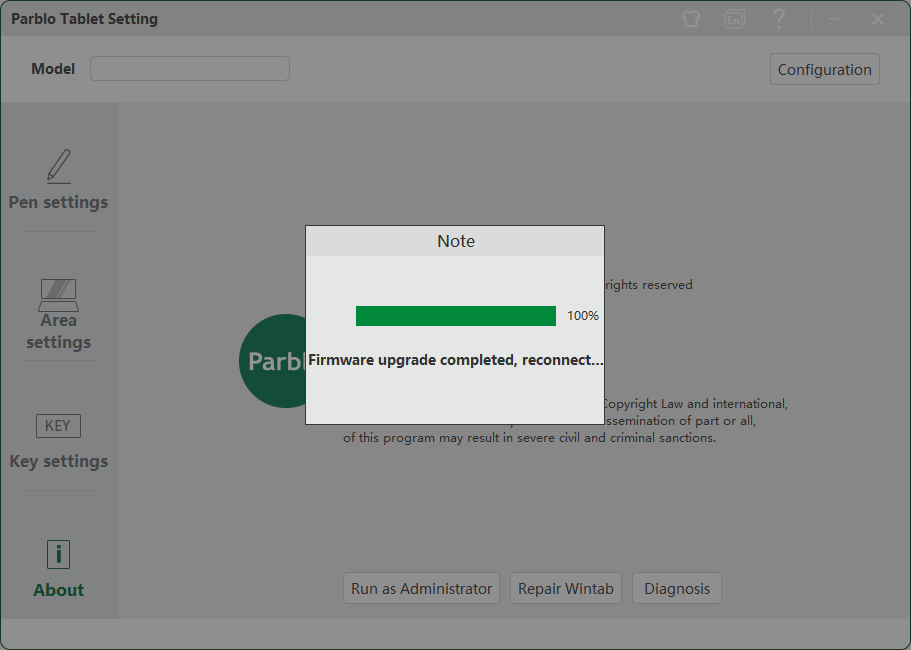

⑤ Firmware upgrade completed
Mac upgrade process:
(Please note! After a successful upgrade, when connecting to an Android device, you need to adjust the side switch of the digital board to the "black leakage" position for use.)
N4 click to download this firmware
N7 click to download this firmware
N7B click to download this firmware
N10 click to download this firmware
N10B click to download this firmware
Ninos S Click to download this firmware (no need to switch gears)
Ninos M Click to download this firmware (no need to switch gears)
① According to the digital board model, click "Download this firmware" above, download the corresponding firmware file, and save it to a location you can find

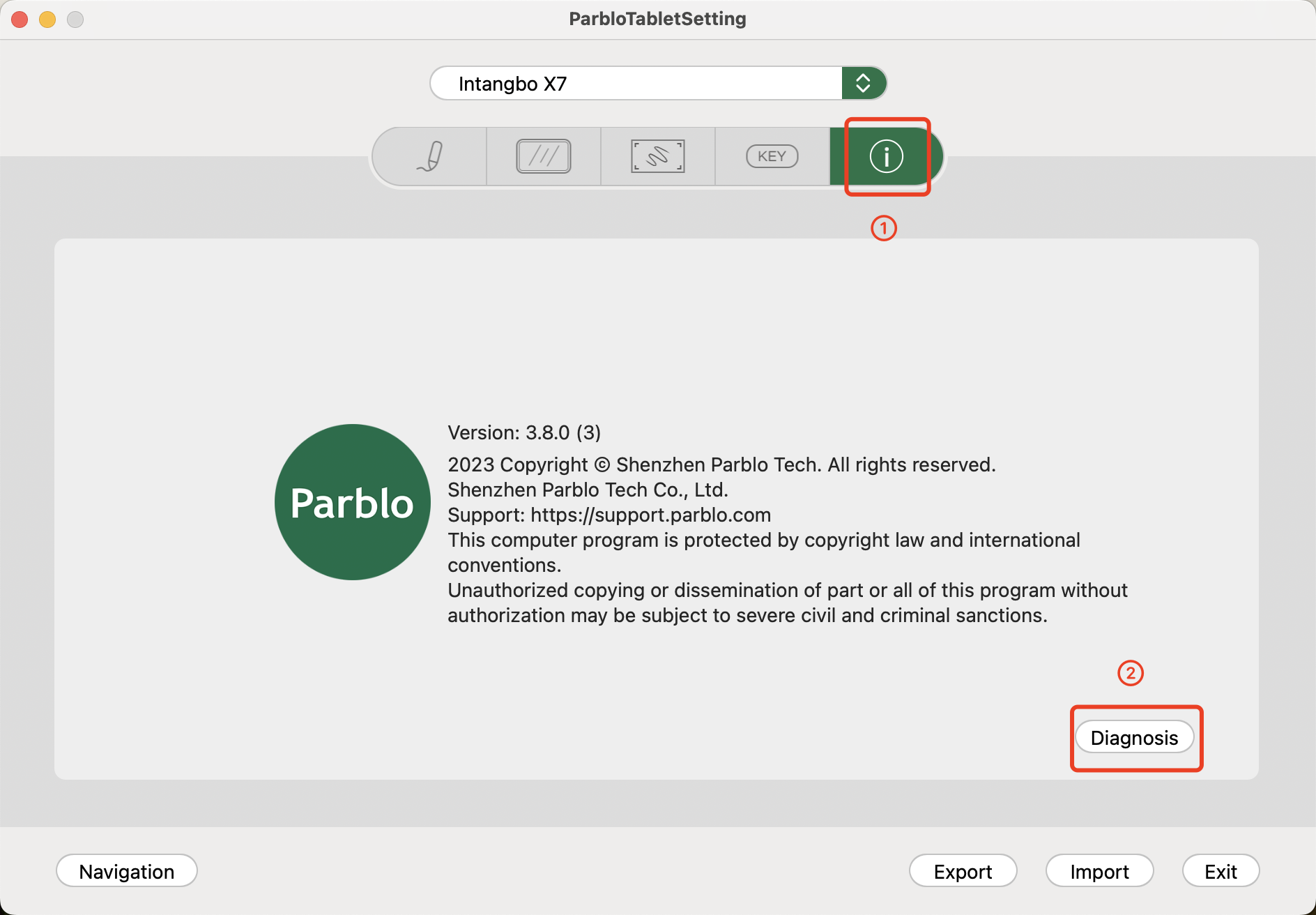

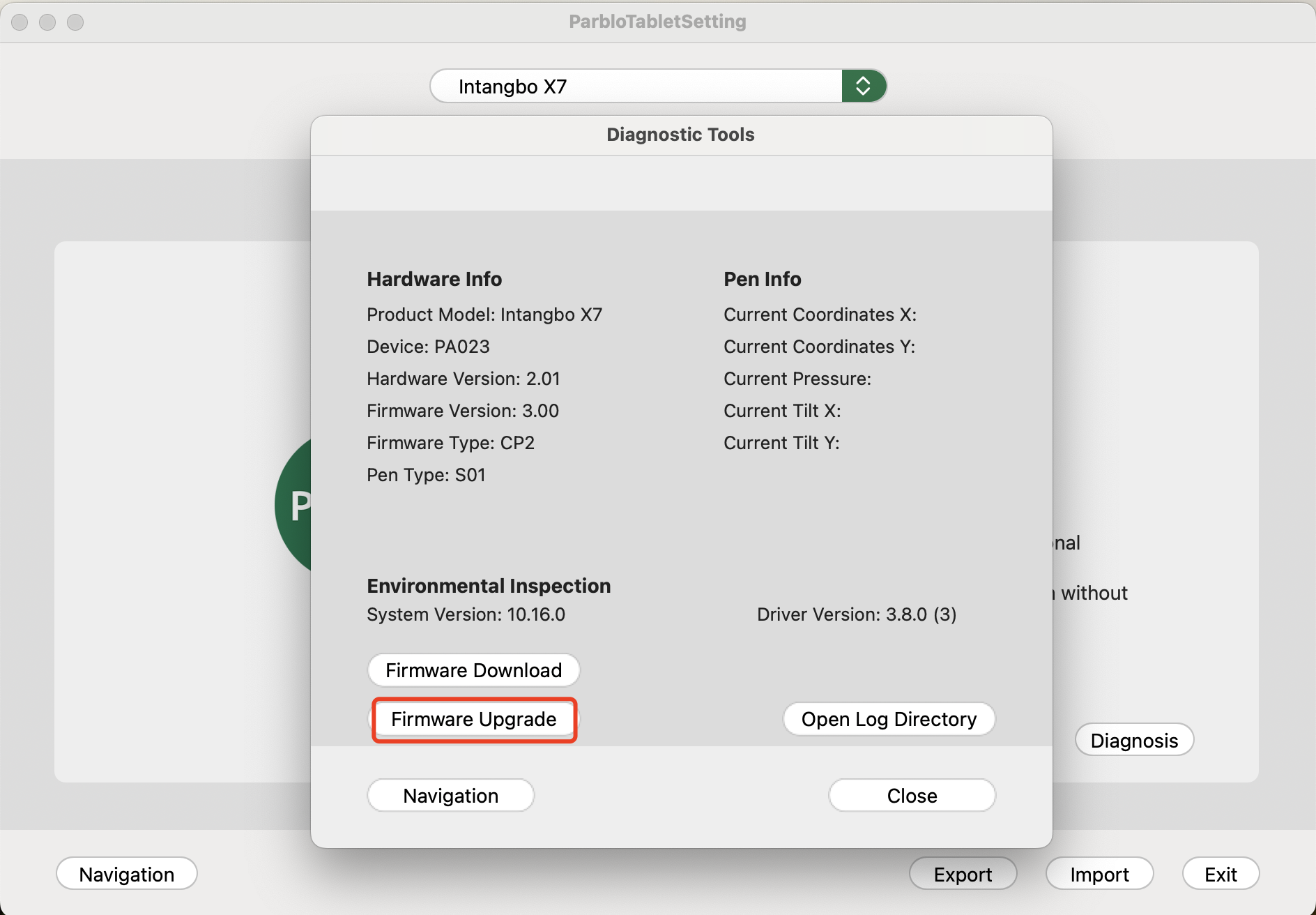

② Open the driver, click on "About" - "Diagnosis" - "Firmware Upgrade"

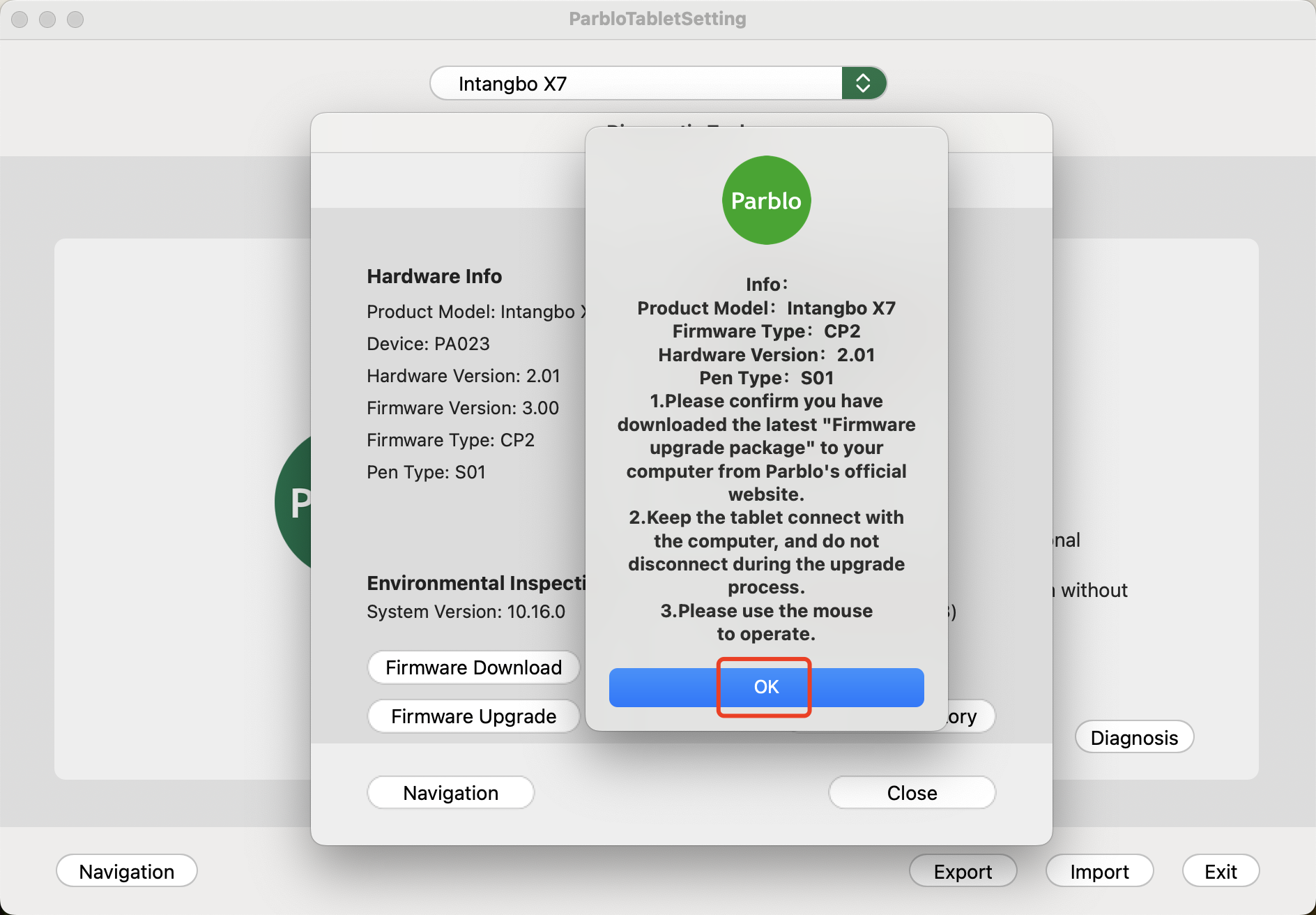

③ In the pop-up window, click "OK" to open the file window

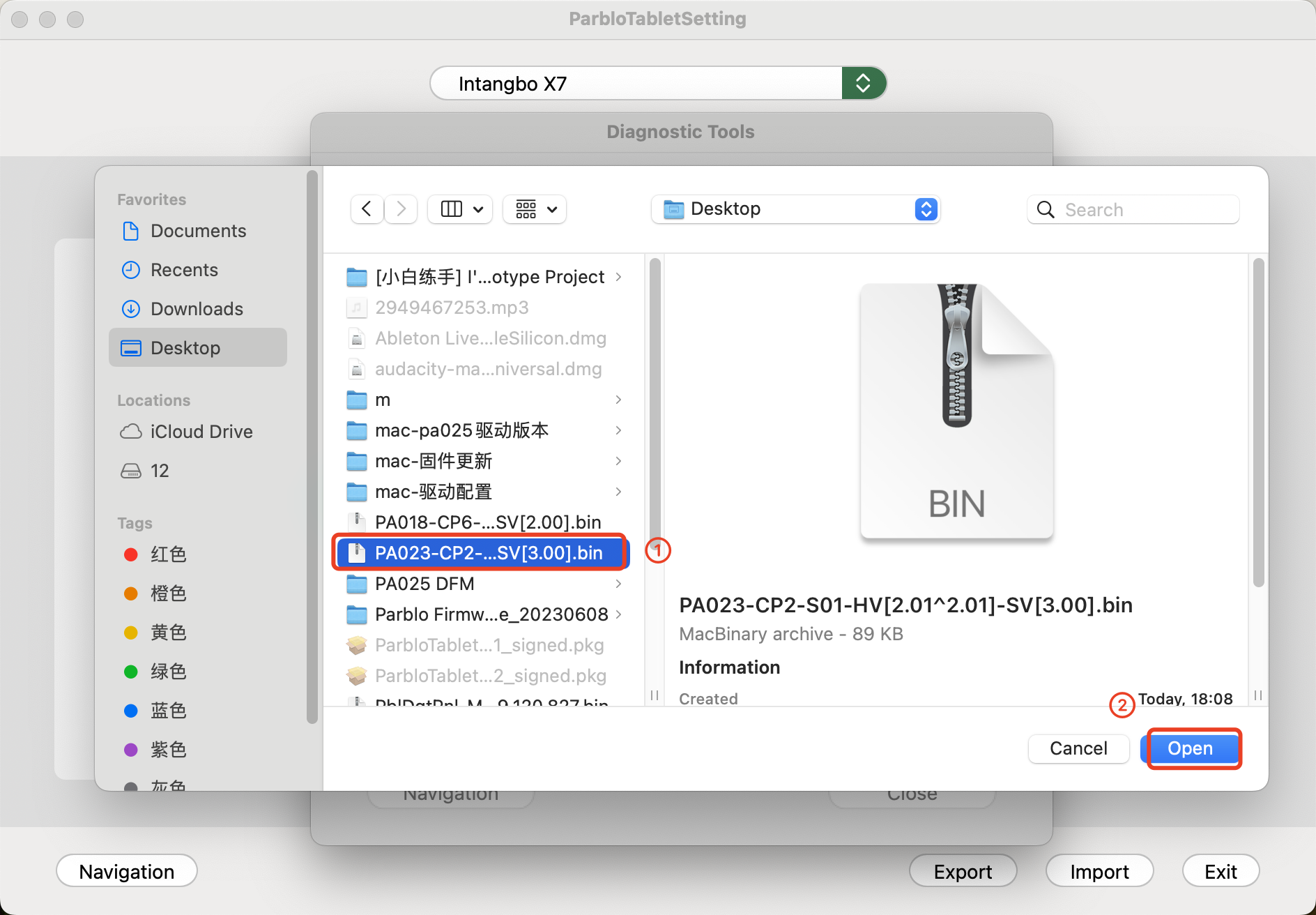

④ Find the firmware you just downloaded and saved in the pop-up window, open the BIN file to upgrade
(Attention! Do not disconnect during the upgrade process)
⑤ Firmware upgrade completed
